Hardware | |
CPU | Intel JASPER LAKE N5100， 2.8 GHZ |
GPU | Intel® HD Graphics Gen 11 LP |
RAM/ROM | 4GB LPDDR3/ 64GB EMMC. Optional: 8GB, up to 16GB/ Optional: 128GB, up to 512GB |
External Memory | NO |
LCD Display | 10.1 inch 16:10, 800×1280P, IPS 700 cd/m2 |
Touch Panel | 5-point tempered glass capacitive screen G+F+F, hardness 7H |
Camera | NO (Optional) |
Battery | Optional , Built in polymer lithium ion battery 1000mAh/7.4V 30 mins (50% volume sounds, 200 nits brightness, 1080P HD video display by default), It is used to support normal power off and protect user data. |
RTC | Built in 2032 RTC dry battery |
Speaker | 1.5W *1, Single horn (Maximum 2W) |
Mic | Single MIC |
G_sensor | Gravity acceleration sensor |
Fingerprint | NO |
Data Collection & Networking | |
Barcode Scanner | NO |
NFC | Optional NXP300, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092 |
BT | BT5.0 (BLE) class1 Transmited distance: 10m |

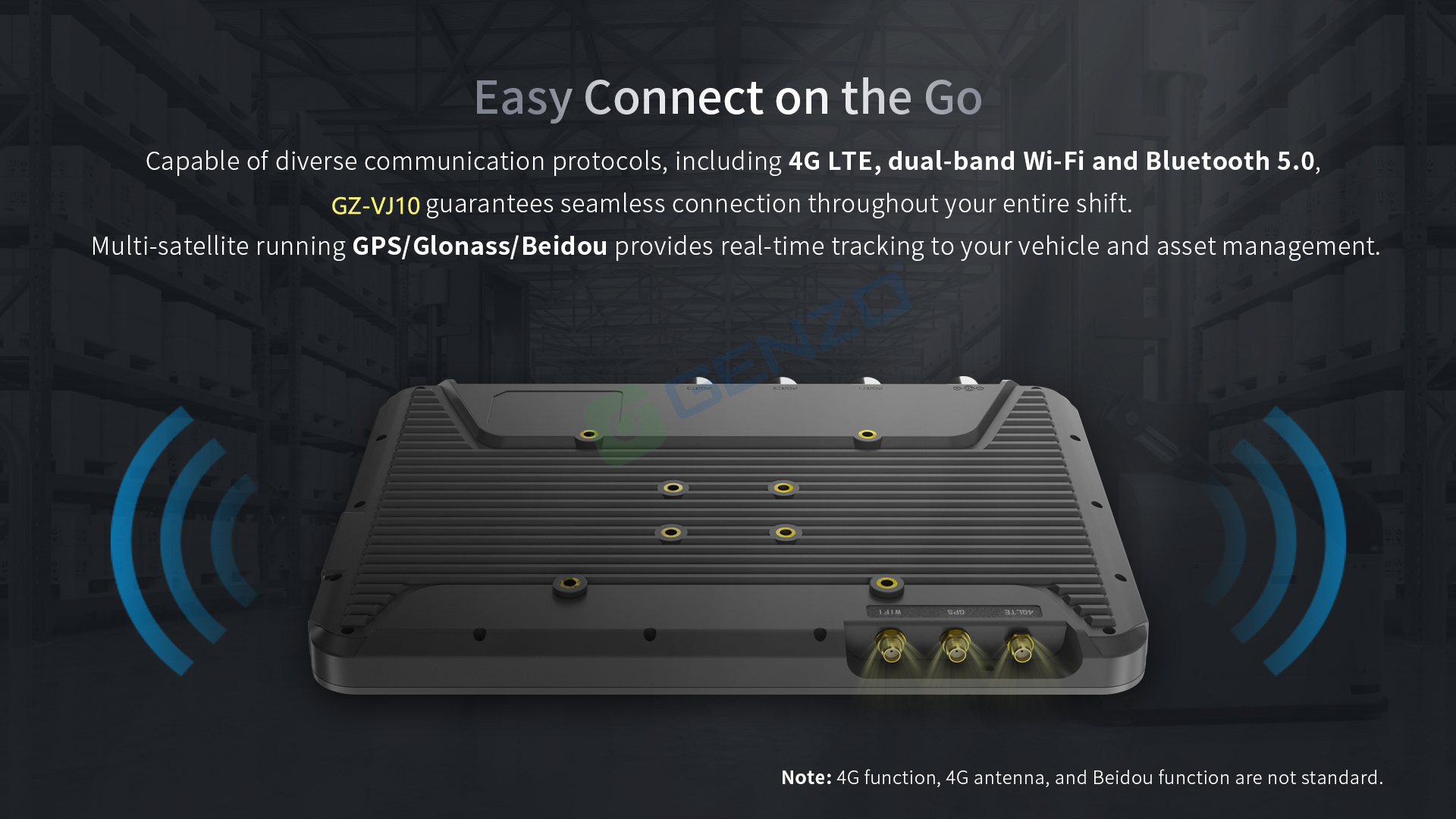

WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
4G | Optional, South America or North America module, LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD B40 WCDMA: B1/B5/B8 GSM: 900/1800 |
GPS | Built in, Ublox 7 supports GPS, GLONASS Capture sensitivity: -160 dBm; Cool Start Time:less 50second,Hot Start Time:less 28second |
OS | Windows 11 Pro inactivated os(Free), Optiona Home/IOT/LTSC |
Ethernet interface | Optional, 1* RJ45 board,(10/100M/1000M) Ethernet interface |
Serial port | Optional, 1* DB9 board |
I/O Port & Appearance & Package | |

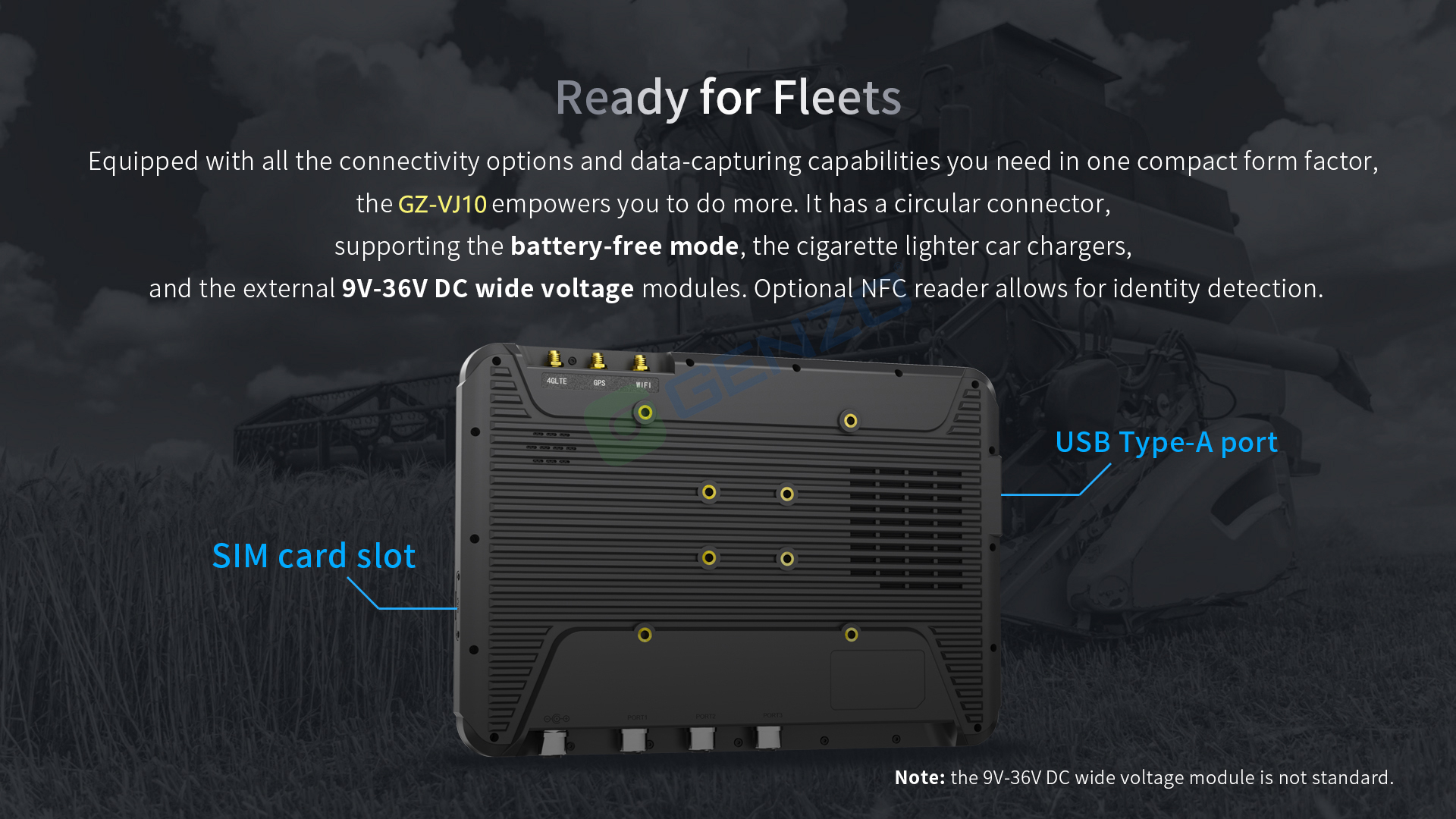

I/O Port | SIM card slot (optional) Nano-SIM *1, Standard USB-A port / Data transmission USB 3.0 *1, USB A port, HOST data transmission, Power interface DC input (Input: 11~24V), Compatible: 4-way GPIO customized for customer customization, PORT1 (M12-12) (optional) 1000M network interface, Standard 8 pin Ethernet signal (100M/1000M high-speed Ethernet), PORT2 (M12-12) (optional) RS232 *1+RS232/RS485 *1， 9PIN DB9 full function serial port RS232; 3PIN data transmission RS485/3PIN PORT3 (M12-12) (optional) USB 2.0 *2+CAN/CVBS *1， USB2.0 standard interface *1; USB2.0 standard interface *1; Optional CAN or CVBS for customer debugging, |
Keys | Power *1 Volume Adjustment Key (+) *1 (F1 Key) Volume Adjustment Key (-) *1 (F2 Key) Customizable *1 (F3 Key) Customizable *1 (F3Key) |
Indicator light | 1. Power indicator (blue when starting) 2. Charging lamp (red when DC is powered on) 3. Full charge indicator light (green when full with battery, not on when no battery) |
Power Adaptor | Optional 19V3.42A DC φ5.5 power adapter. Output USA Standard CE approval. UK/EU Standard Optional |
Dimension | 264.5*184.1*23.0 mm |
Weight | Device unit: 1015g. |
Package | WIFI rod antenna,GPS rod antenna,Power adapter cable, Packing box（Can be customized logo) |

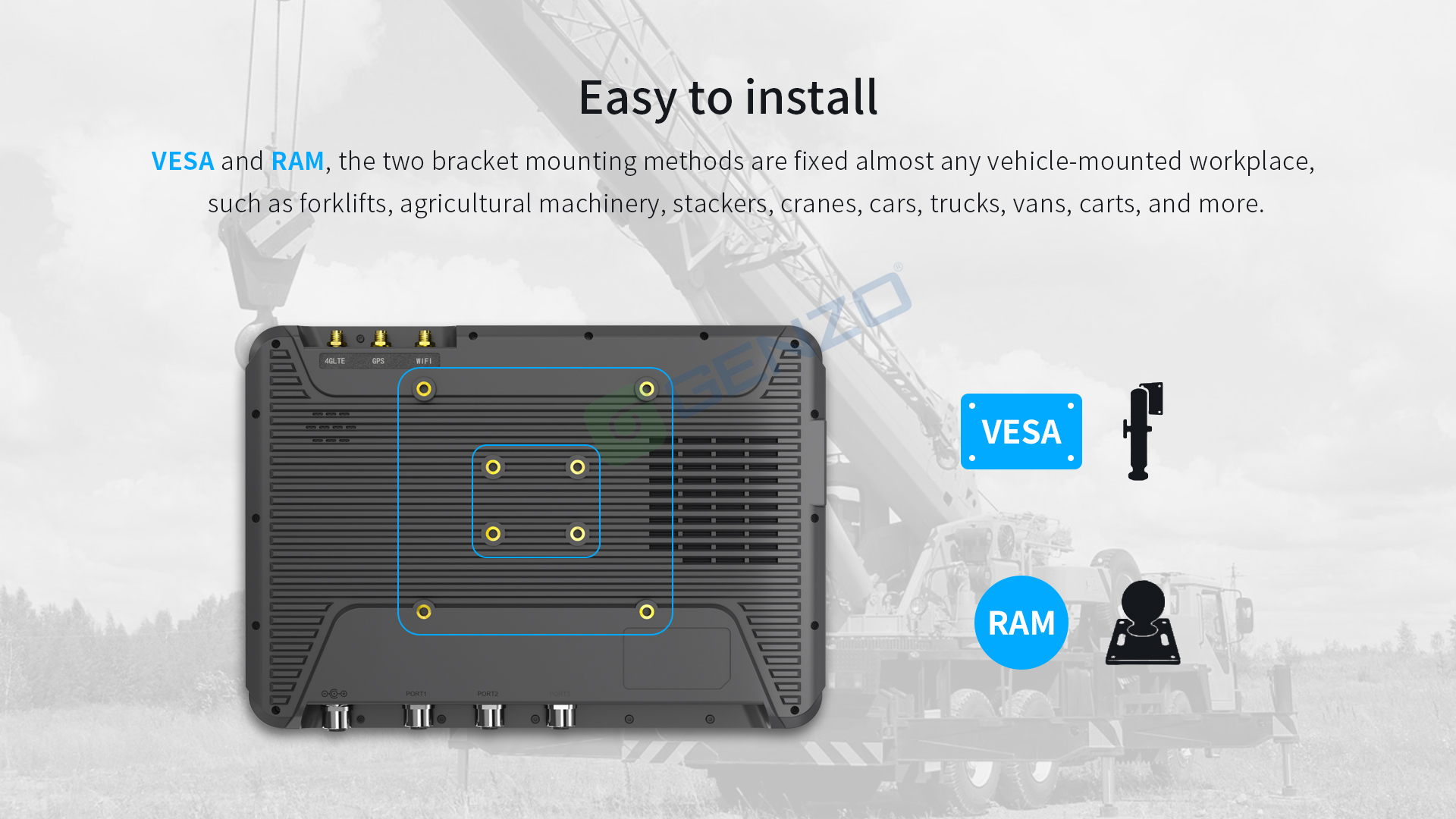

Optional Accessories | 4G rod antenna (4G+network port) 4G rod antenna shall be used together with 4G module function, Frequency Rang:824~960/1710~2700MHz Return Loss:-6dB or less Frequency Rang:3.4~3.8/4.4~4.9GHz Return Loss:-10dB or less Gain:2.0±0.2 dBi Cigarette lighter adapter 19V3.42A Cigarette Lighter Adapter Power adapter 19V3.42A DC φ5.5 power adapter Power adapter cable Transfer 8 pin power lines to 8 loose wires (1.2M) to meet the customer's self wiring requirements. Bracket Optional bracket Bracket Optional platform bracket Function adapter cable Multi function adapter selection, 12PIN to 2-way USB 1-way CAN Function adapter cable Multi function adapter selection, 12PIN to full function RS232 power line + serial communication 485 Function adapter cable Multi function adapter selection, 12PIN to full function RS232 power line + serial communication 232 Function adapter cable Multi function adapter selection, 12PIN to 1000M RJ45 Function adapter cable Multi function adapter selection, 12PIN to 12 loose wires 1.2m to meet the customer's demand for self connection Wide voltage module Wide voltage demand when the power supply is unstable, External 9V~36V wide voltage DC module, 9~36V wide voltage input, 12V ± 0.5V constant voltage output to equipment GPS vehicle mushroom antenna Active GPS mushroom antenna, line length 1.5M, 20dB ± 2dB |
Certificate System & Reliability Design | |

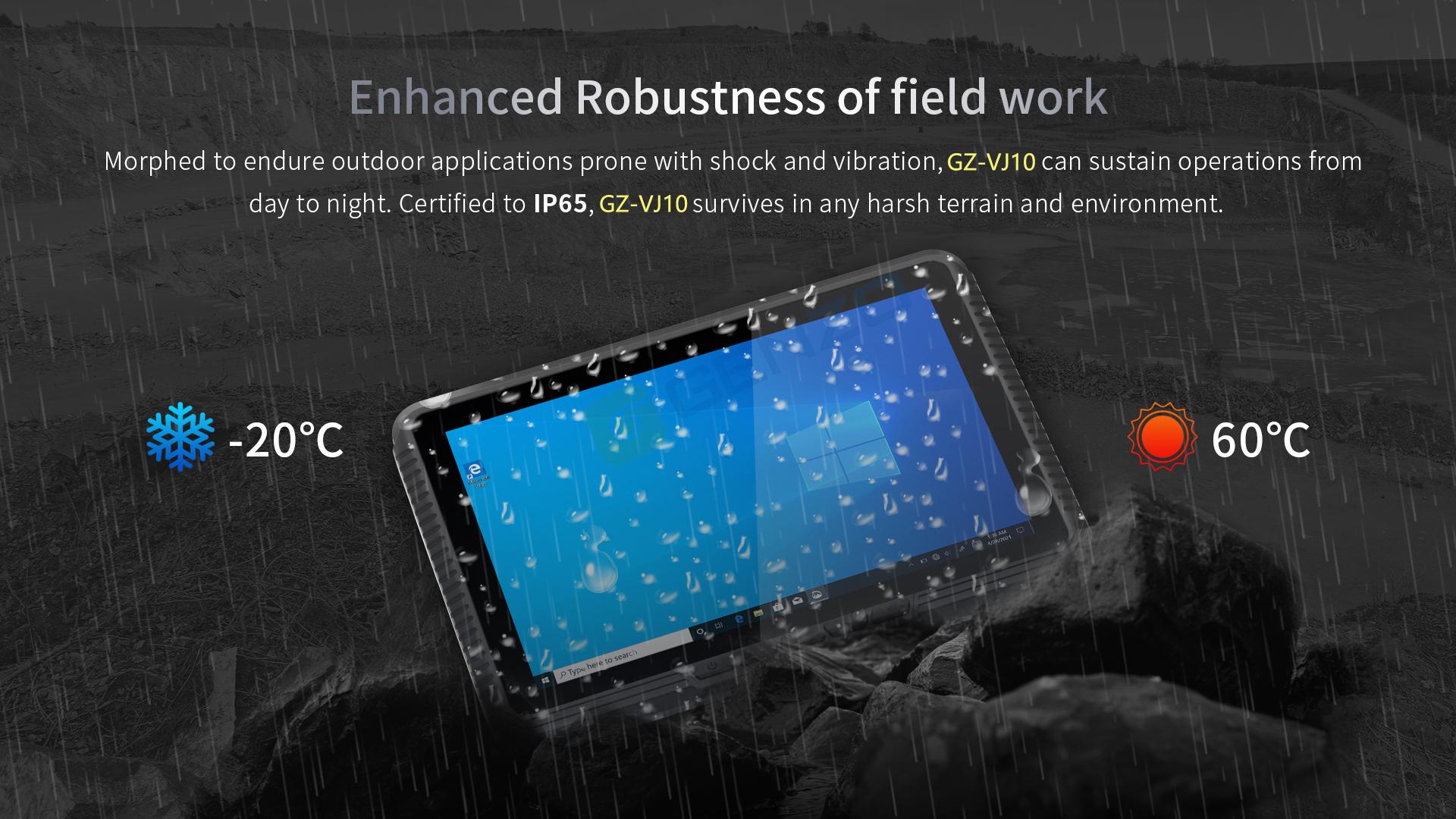

IP67/IP65 | IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample. |
CE NB | YES |
MIL-STD-810G | YES |
Battery | UN38.3，MSDS,IEC62133 |
Drop Height | 1.22m composite wood floors,in operation status. ±8kV contact discharge, ±15kV air discharge |
Operate Temperature | ‘-20 °C to 60 °C |
Store Temperature | ’-30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
