Hardware | |
CPU | 12TH i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz |
GPU | Intel® Iris® Xe Graphics eligible |
RAM/ROM | 16GB LPDDR4 on board Optional: 32GB, up to 64GB / 128GB NGFF SSD Removeable, Optional: 256GB/512GB, up to 1TB/2TB |
External Memory | Support TF*1,MAX 128GB |

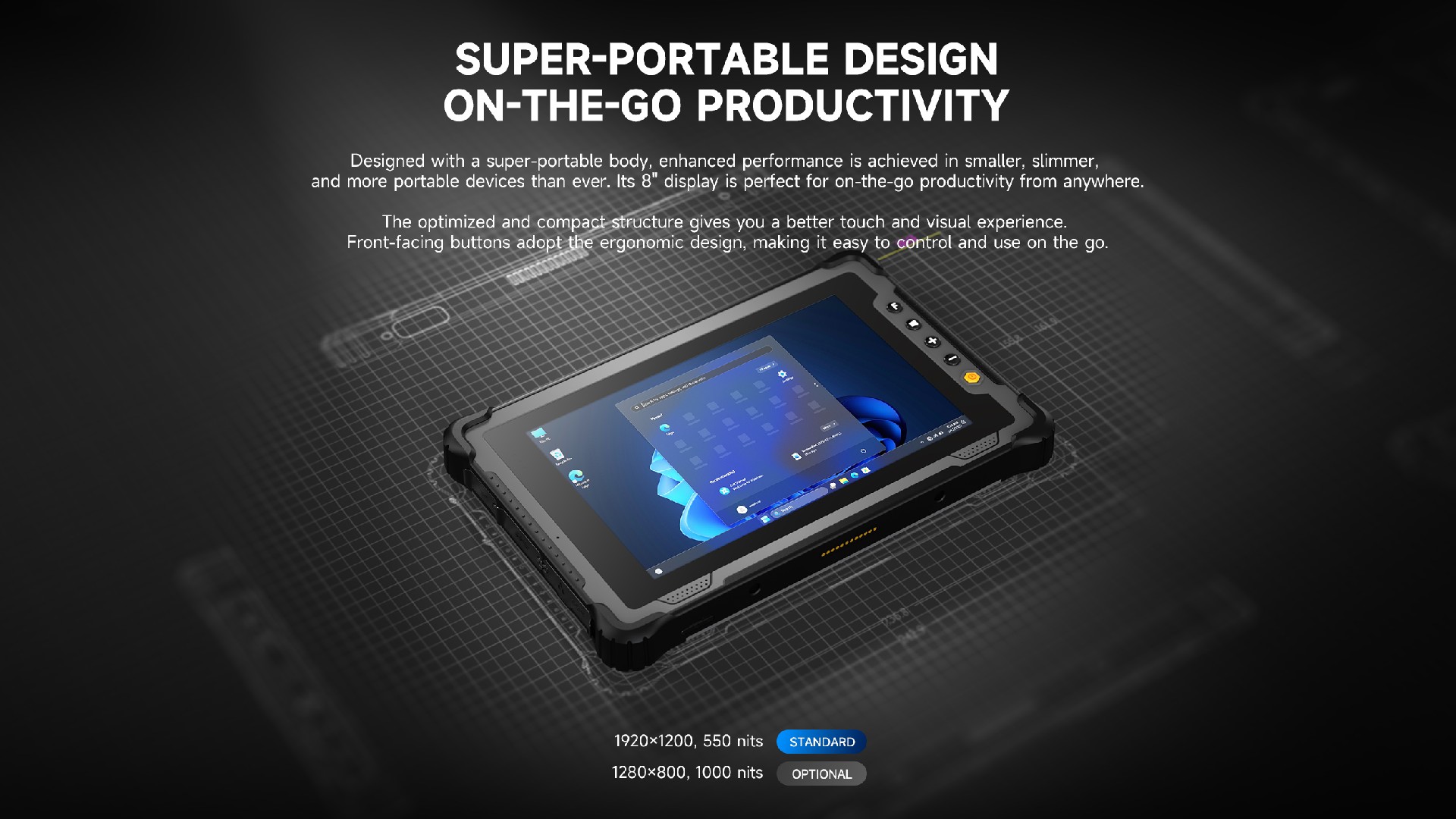

LCD Display | 8 inch 16:10, 1200×1920P With 550 cd/m2 ((800*1280) 1000NITS Optional) |
Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch |
Camera | Front Integrated FF 5.0 MP,Rear Integrated AF 13.0 MP With Flashlight |
RTC Battery | Separated 3V/1mAh RTC on board |
Battery(Small+Big) | Removable Li-polyment Battery 7.6V/5700mAh 5.0 Hours ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default ) |
Speaker | Built in 4Ω/1W waterproof speaker *2 |
Mic | Waterproof microphone 4618, specification: - 38dB±3DB |
TPM | Built-in TPM2.0 |
G_sensor | Gravity acceleration sensor |
Fingerprint | Built-in ×1 SPI Fingerprint (windows hellow boot login) |
Fan | Built-in ×1 IPX5 |
Data Collection & Networking | |
Barcode Scanner | 2D Optional Honeywell N3680/N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse) |
NFC | Optional HF-RFID (NFC) reader |
BT | BT5.3 (BLE) class1 Transmited distance：10m |
WIFI | Wi-Fi 6 Intel® Wi-Fi 6E AX210（802.11 ax） |
4G | 4G LTE（EC200A-EL） LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
GPS | Integrated GPS/GLONASS module |
OS | Windows 11 Pro (Home, IOT) 64bit, Language by default: English |
I/O Port & Appearance & Package | |

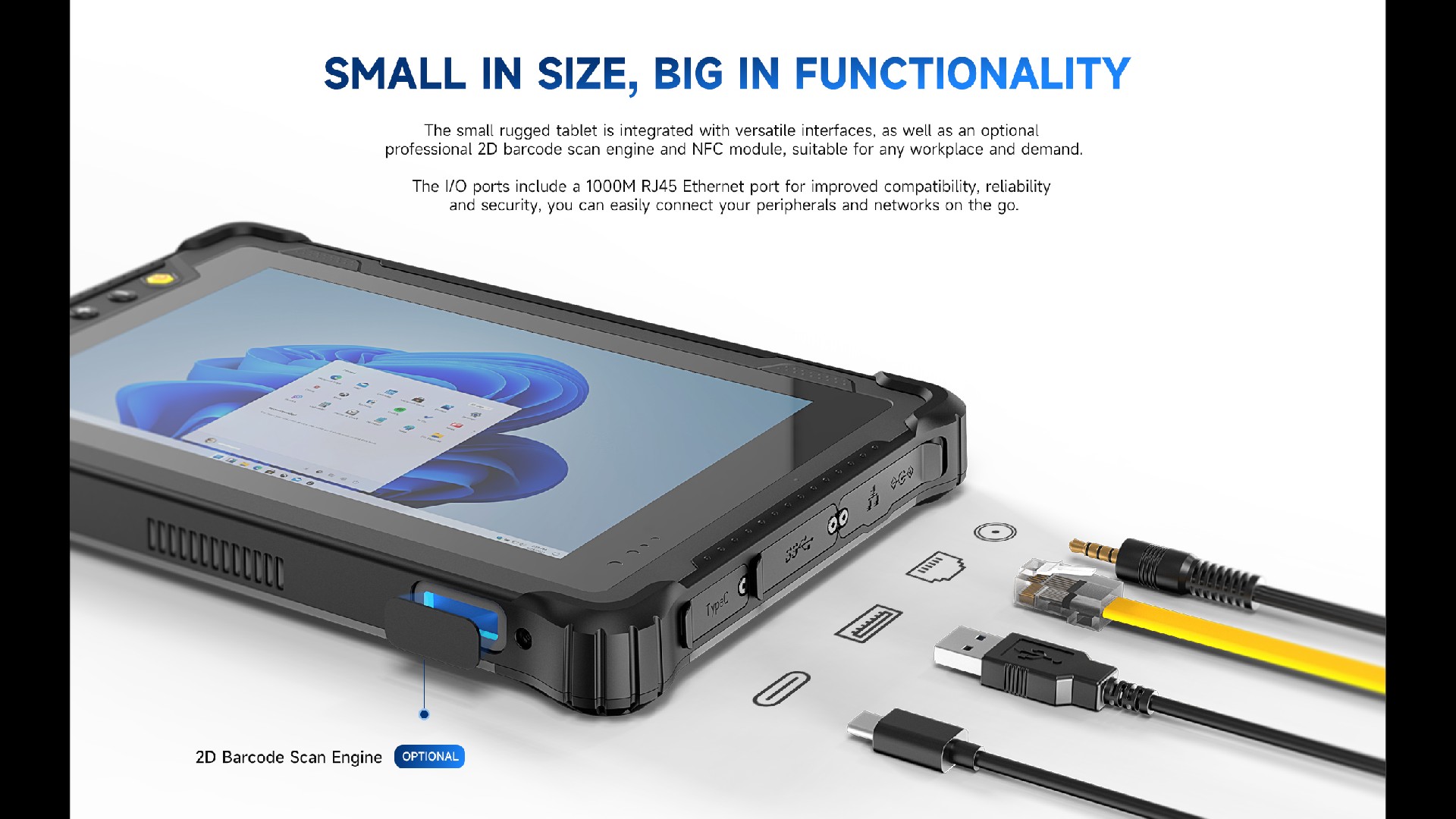

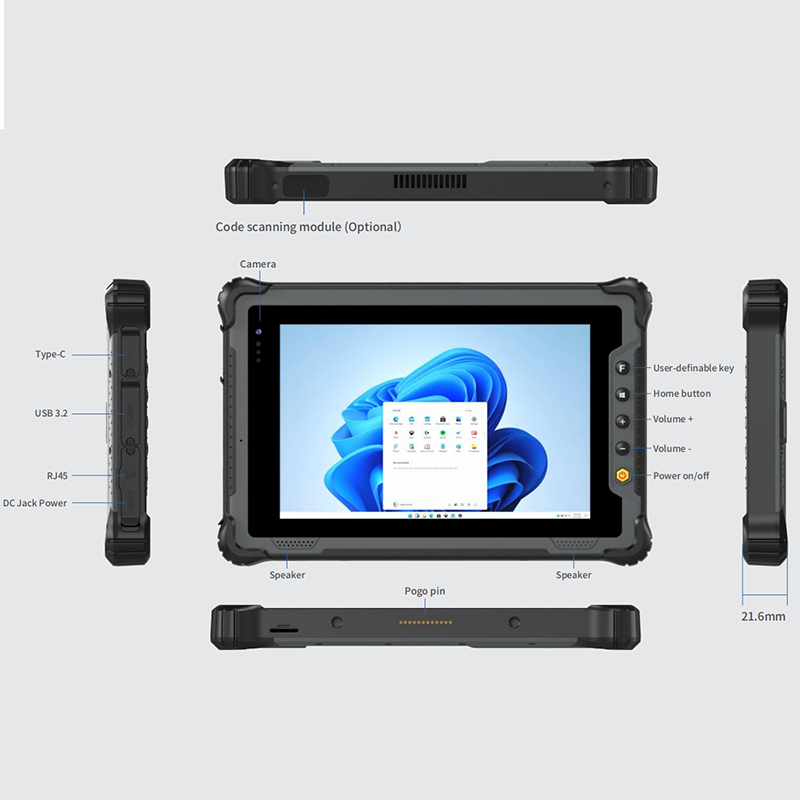

I/O Port | USB 3.2 Type-A x 1, USB3.2 (Type-C) x 1 Nano SIM Card x 1, Micro SD Card x 1, RJ45*1 10M/100M/1000M self-adaptive 12PIN Pogo Pin (USB/Docking charging) x 1, Φ4.0mm DC 12V 4A DC jack x 1 |
Keys | Power Button *1 Volumn + key *1 Volumn - key *1 Windows Home *1 F key *1 (Barcode scanning) |
Power Adaptor | AC100~240V, 12V/4A , 48W USA Standard CE approval. UK/EU Standard Optional |
Power Indicator Light | 1. Power On: Power indicator remains solid. 2. Power Off: Power indicator turns off. 3. Sleep Mode: Power indicator blinks. |
Baterry Indicator Light | 1. Charging: Charging indicator remains solid (red). 2. Fully Charged: Charging indicator remains solid (green). 3. Large Battery Not Connected: Charging indicator flashes quickly (red). 4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red) |

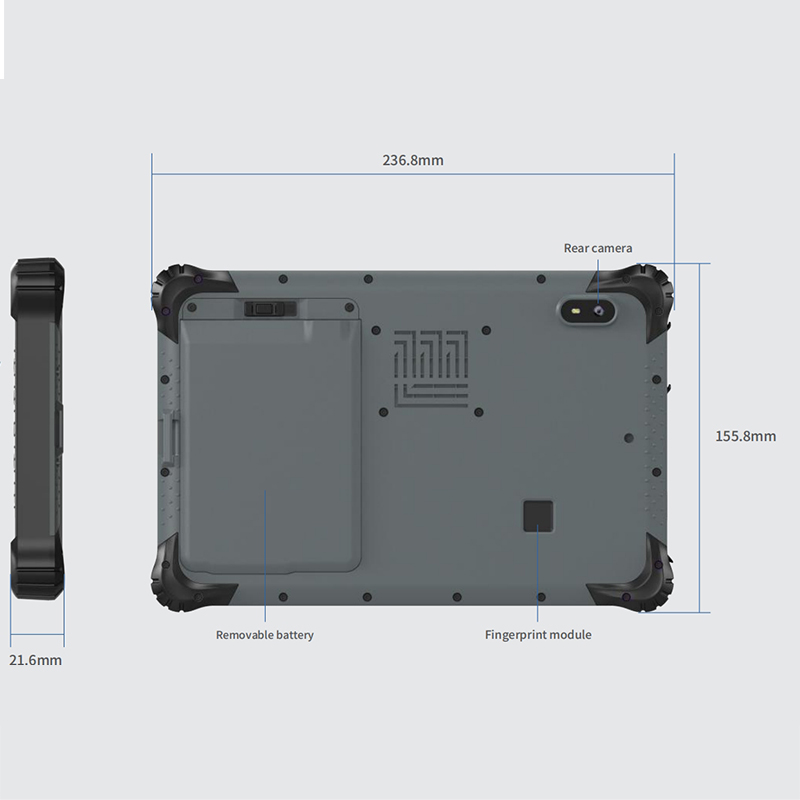

Dimension | 236.8 mm (L) × 155.8 mm (W) × 21.6 mm (H) |
Weight | Device unit: 850g. |
Package | Standard configuration:Handle/USB cable/OTG cable/12V-4A Adapter/Packing box（Can be customized logo) |
Optional Accessories | Docking Charger / Stylus / Removable Battery/Carry Handle/Vehicle Mount |
Certificate System & Reliability Design | |
IP67/IP65 | IP67 Report:Water Resistance:IP-X7，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample. |
CE NB | YES |
MIL-STD-810G | YES |
Battery | UN38.3，MSDS,IEC62133 |
Drop Height | 1.22m composite wood floors,in operation status |
Operate Temperature | ‘-20 °C to 60 °C |
Store Temperature | ’-30 °C to 70 °C |
Humidity | Humidity: 95% Non-Condensing |
